Product Description
DCD Design & Mfg. Innerduct Pulling Eye - Lug Style
The DCD Design & Mfg. Innerduct Pulling Eye - Lug Style is engineered to securely install polyethylene ducting using a tapered screw-in thread that grips the inside diameter of the duct. This pulling eye is perfect for directional drilling operations.
Key Features:
- No moving parts for dependable, maintenance-free performance
- Simple and quick installation without requiring specialized tools
- Strong grip that ensures reliable performance
- Features cutting edges that create a thread in the duct, similar to how a tap cuts a thread in steel
- Typically requires only 7-8 full threads to provide a grip stronger than the duct itself
- Constructed from durable steel and plated to resist corrosion

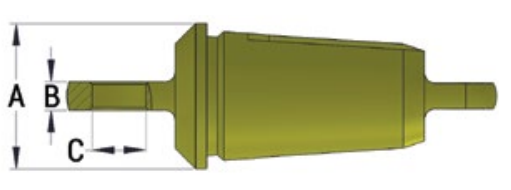

| Part Number | Nominal Duct Size | Minimum Duct Diameter | Maximum Duct Diameter | A | B | C |
Weight (lbs) |
|
CZ 00604-075 |
0.75" | 0.72" | 0.93" | 1.125" | 0.34375" | 0.53125" | 0.51 |
| CZ 00604-100 | 1.00" | 0.94" | 1.15" | 1.375" | 0.34375" | 0.65625" | 0.79 |
| CZ 00604-125 | 1.25" | 1.26" | 1.44" | 1.75" | 0.34375" | 0.65625" | 1.40 |
| CZ 00604-150 | 1.50" | 1.48" | 1.66" | 2.00" | 0.50" | 0.9375" | 2.03 |
| CZ 00604-200 | 2.00" | 1.91" | 2.08" | 2.50" | 0.50" | 0.9375" | 3.20 |
Sold per 1 Ea. DCD 2" Innerduct Pulling Eye - Lug Style Product Information: Recommended when attaching directly to a line swivel or other clevis type connector
