Product Description

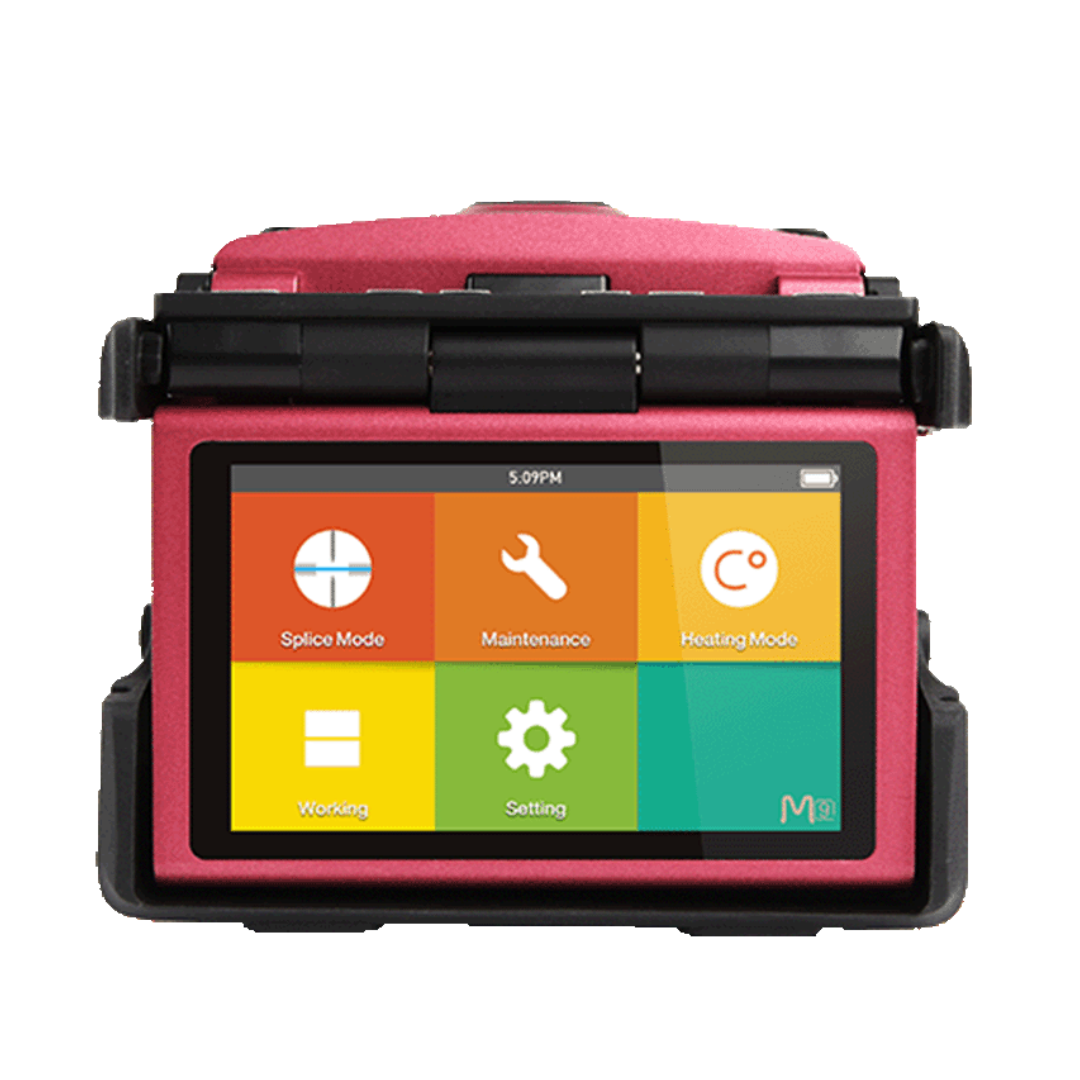

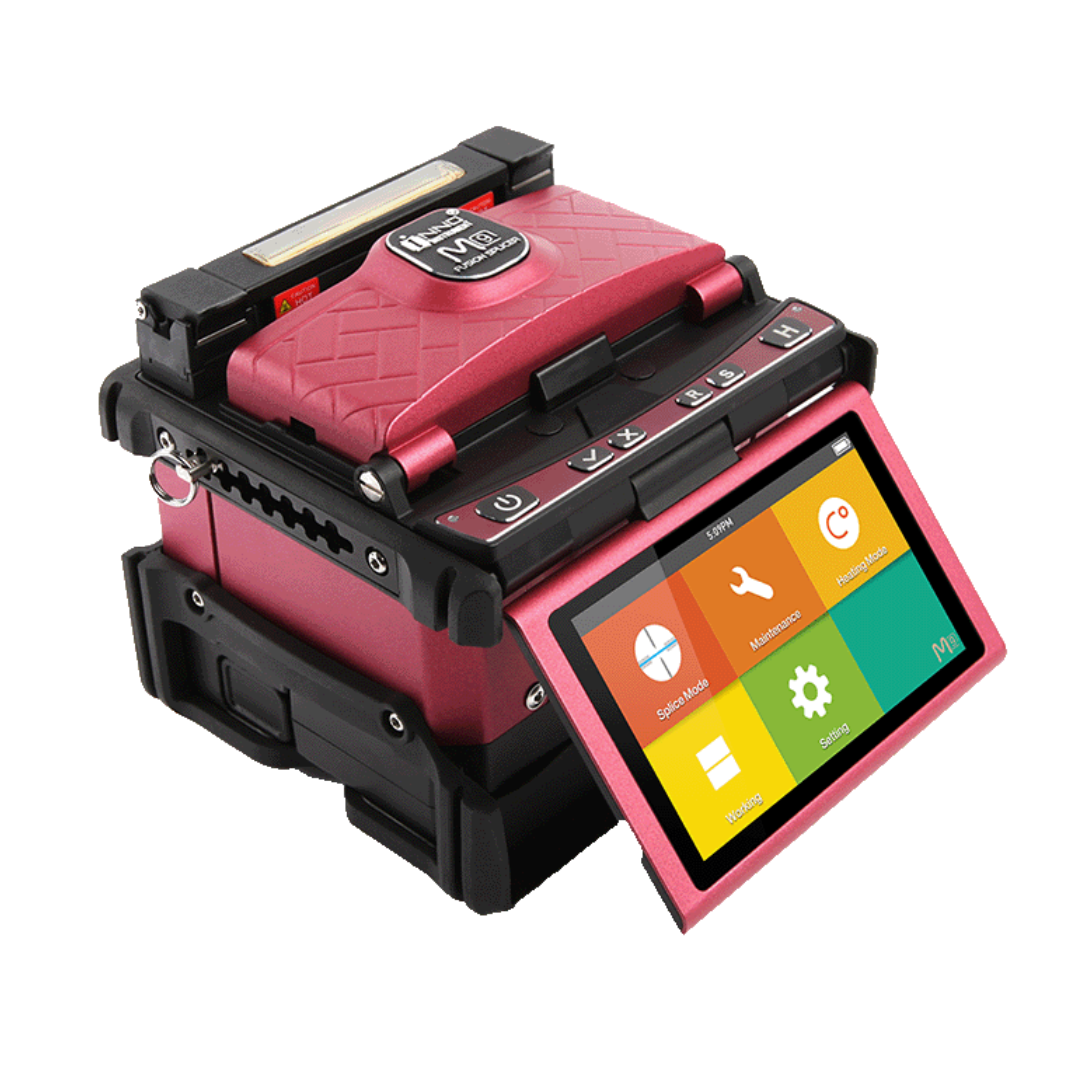

Inno M9
M9, a core-alignment splicer with ultra-portable design, is one of the most efficient fusion splicers in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products. M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can enlarge / reduce the screen up to 400X and check the optical fiber with clear images. With M9’s Adjustable strap hanger, users can customize their working station. M9 is genuinely the world’s most efficient hand-held fusion splicer in the telecommunications industry.
Specification Overview:
Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways
Fusion Splicer:
Splicing Technology Core Alignment Splicing Method
Splicing Time 7 seconds (quick mode) / 9 seconds (SM auto mode)
Heating Time 13 seconds (45mm, slim 60mm), 15 seconds (60mm)
Typical Loss 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) /
0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
Dimensions:
Size (HWD) H: 124mm W: 144mm D: 131mm
Weight 1.49kg (with battery)
INNO Instrument M9 Brochure
