Product Description
Minimum Quantities may apply.

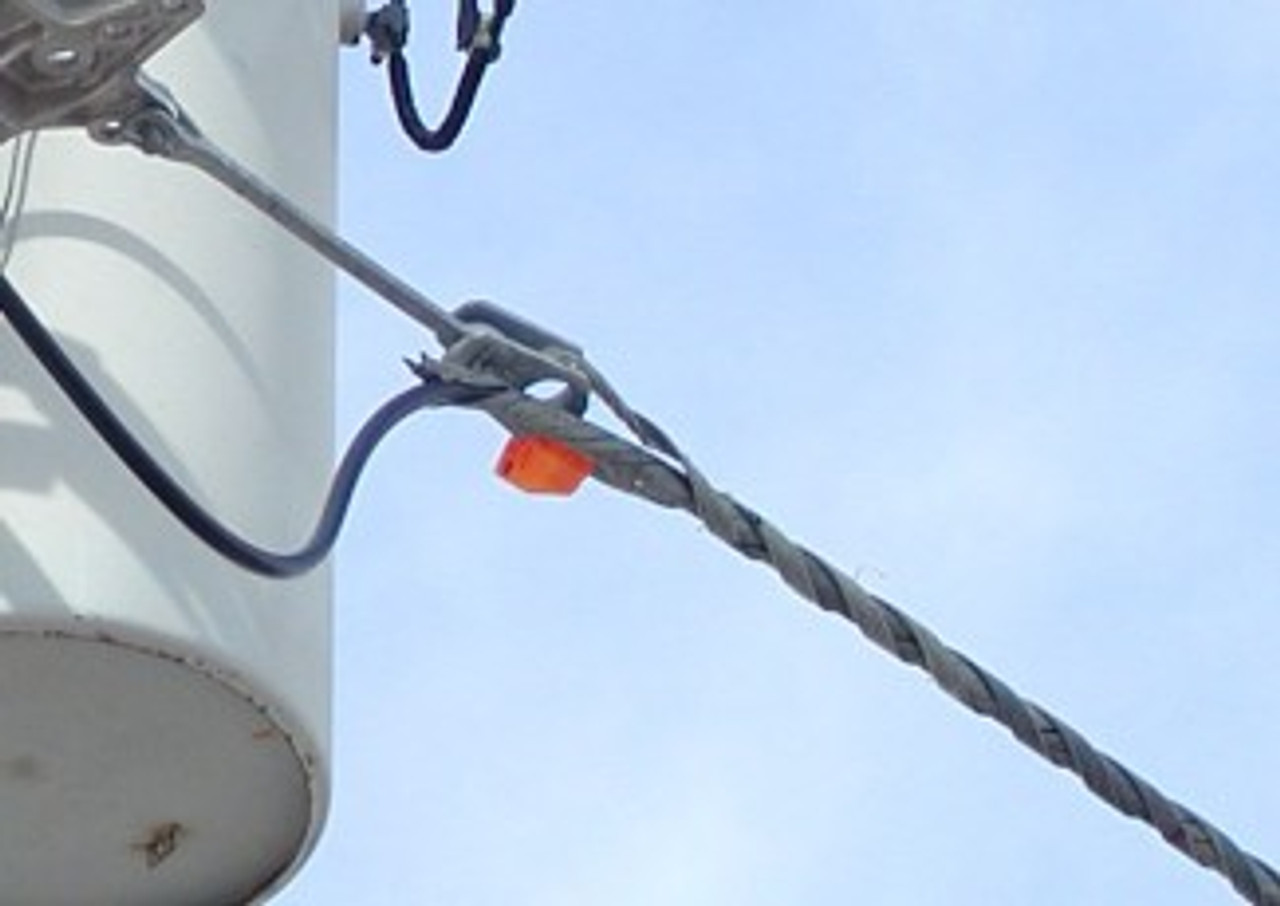

Dead-end component is required to transfer axial tensile loads and distribute radial compressive forces through the plastic jacket and onto the internal strength members without damaging the fragile plastic jacket or internal optical fibers.
- Three types of Dead-ends offered: Limited Tension, Medium Tension and High Tension. (Call GUS for High Tension)
- Fittings and grounding accessories available and can be included in the same container with the suspension.
Medium Tension Dead-Ends
| SKU (Catalog Number) | Cable O.D. Range (in) | Overall Length (in) | Color Code |
| 2872100 | .482-.510 | 85 | Orange |
| 2872101 | .511-.542 | 85 | Blue |
| 2872102 | .543-.577 | 85 | White |
| 2872103 | .578-.613 | 85 | Red |
| 2872104 | .614-.651 | 85 | Black |
| 2872105 | .652-.692 | 85 | Yellow |
| 2872106 | .693-.737 | 85 | Green |
| 2872107 | .738-.784 | 85 | Orange |
| 2872108 | .785-.834 | 90 | Blue |
| 2872109 | .835-.889 | 90 | White |
| 2872110 | .890-.945 | 95 | Red |
| 2872111 | .946-1.007 | 95 | Black |
| 2872112 | 1.008-1.073 | 97 | Purple |
| 2872113 | 1.074-1.140 | 100 | Pink |
| 2872114 | 1.141-1.212 | 103 | Brown |
| 2872115 | 1.213-1.288 | 105 | Orange |
Application Procedures
SP-2732 (FIBERLIGN Dielectric Dead-end ADSS)
Catalog Pages
