Product Description

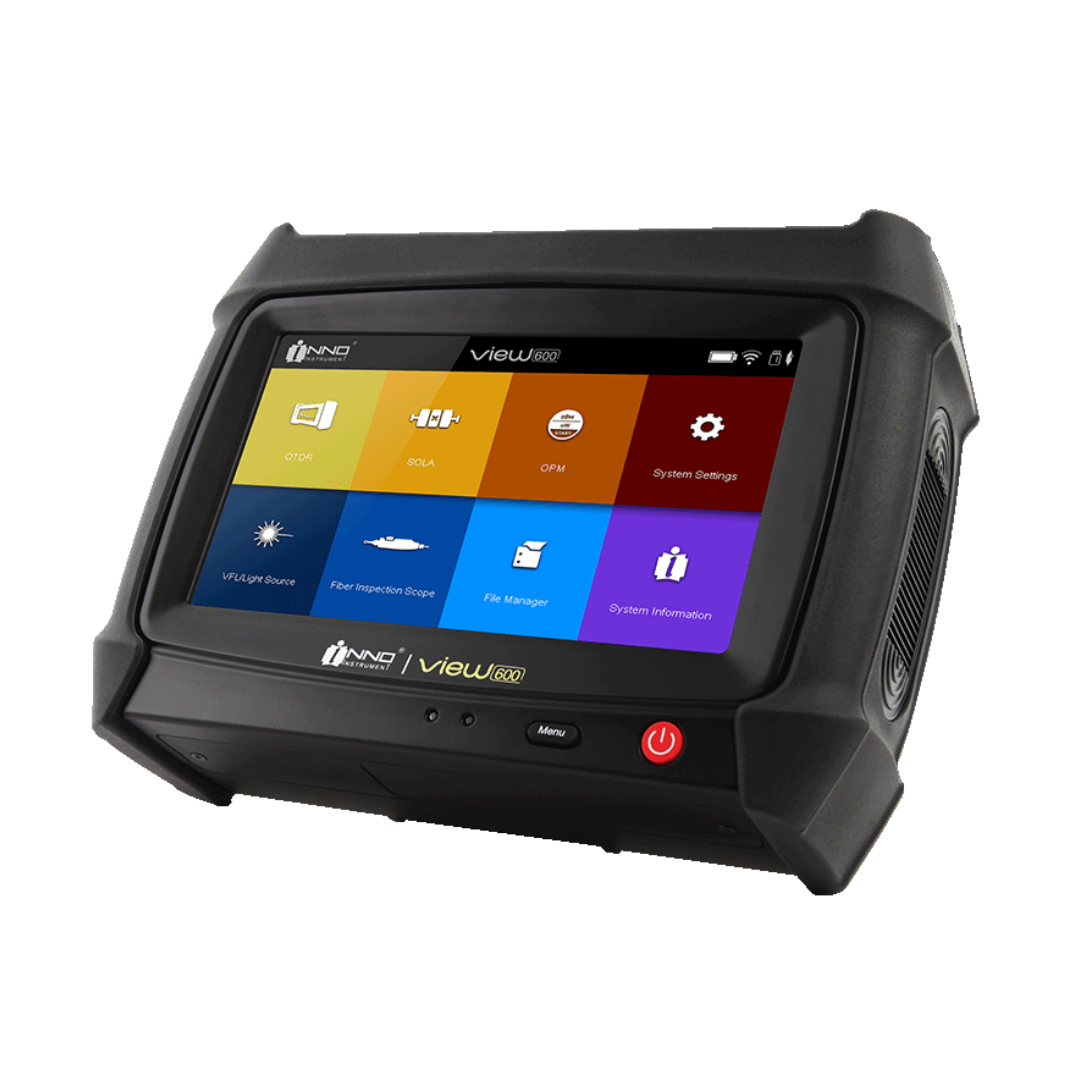

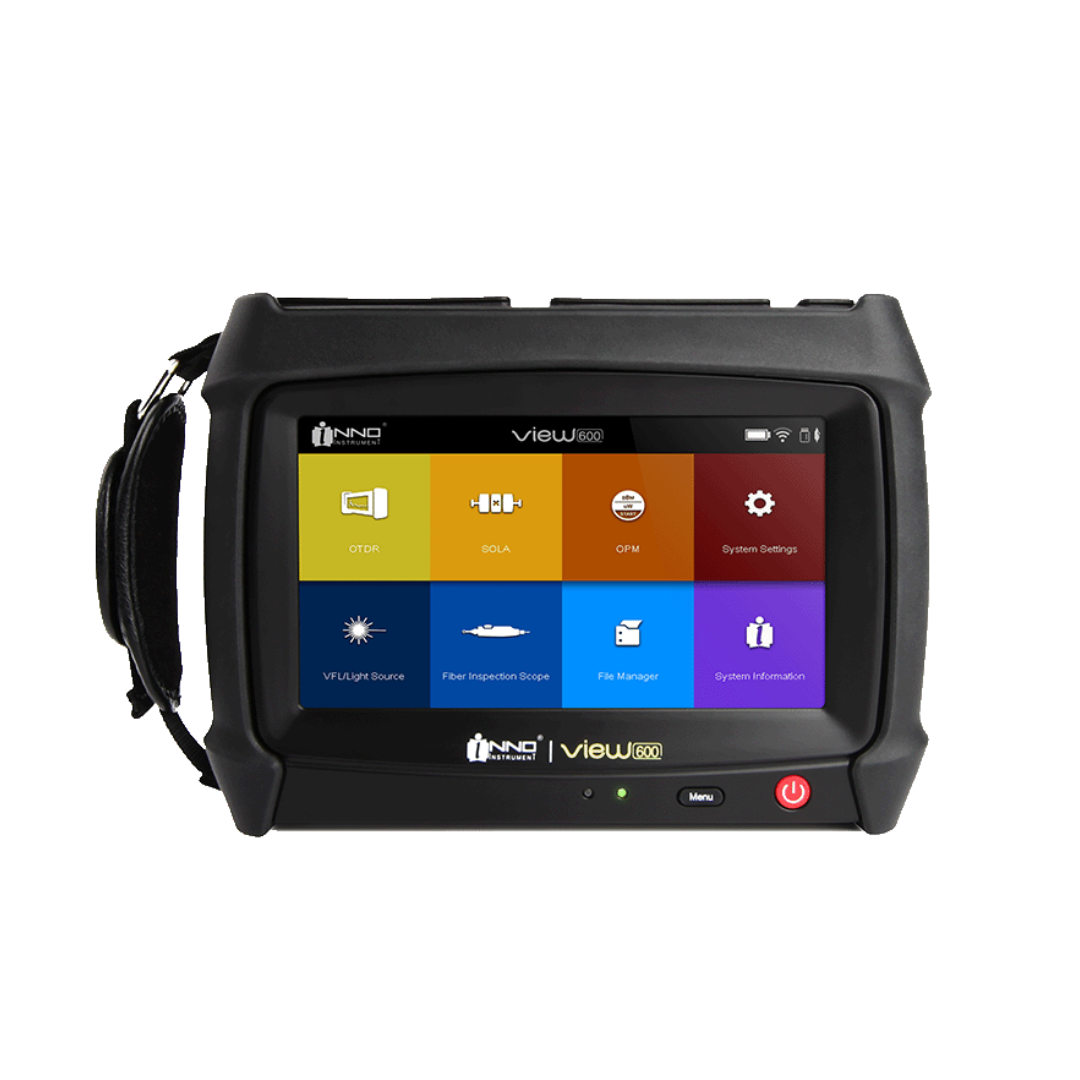

View 600
INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTX/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above all, accurate test result. We guarantee that you can seamlessly test your networks with this changeable smart gear.
Specification Overview:
Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways
OTDR:
Display Size 7 inches, High Brightness TFT LCD, resolution of 800×480
Distance Units m / km / mile / ft / kft
Range Settings 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
Pulse Widths 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
Linearity 0.03dB
Resolution 0.04m ~ 10.24m
Sampling Points 256,000 points
Output Power 20mW
Dimensions:
Size (HWD) 6.25H x 8.58W x 2.75D inches
Weight 1.70kg (with battery)
View 600 Brochure:
https://acrobat.adobe.com/id/urn:aaid:sc:VA6C2:85811c84-40f3-4c21-924e-54052678354a
