Product Description

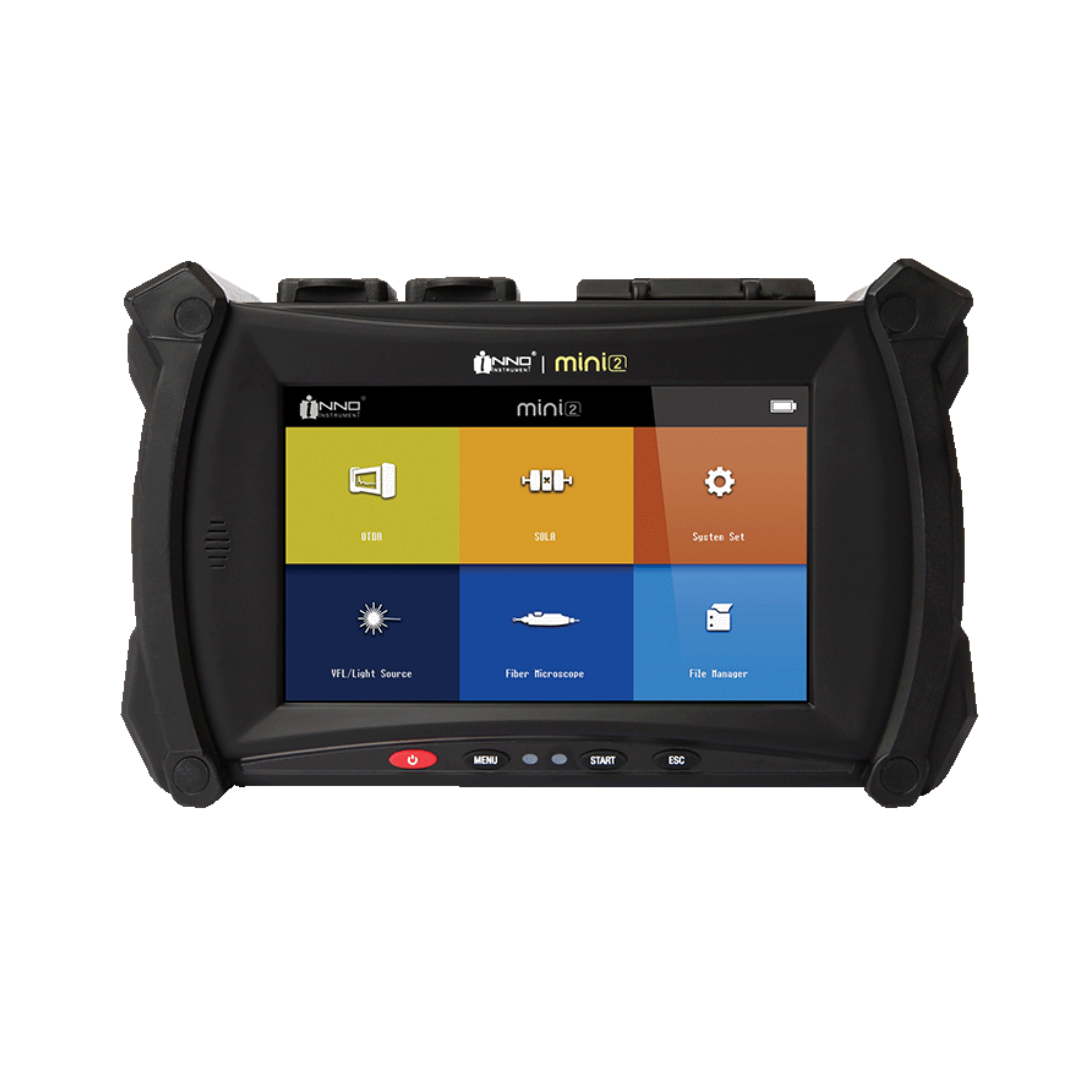

INNO Mini 2 OTDR Kit (INNO MINI 2 OTDR KIT) - Compact and lightweight OTDR designed for last-mile and FTTH fiber optic installation and maintenance.
The INNO MINI 2 OTDR is a powerful tool for fiber optic cable installation and maintenance. Offering high-precision testing capabilities, fast response times, and easy-to-use operation, this OTDR ensures accurate results with minimal effort. Featuring a multi-point capacitive touch screen, it provides a user-friendly experience and automatically generates detailed reports. The MINI 2 OTDR’s compact design makes it easy to handle, providing a lightweight, truly portable solution for fiber testing.
Key Features:
- Optimized 5-inch high-resolution color LCD touch screen
- Maximum resolution of 800 x 480
- OTDR Mode: Measures distance, loss, reflectance, attenuation, and cumulative losses on fiber optic links
- SOLA: Simplifies OTDR testing by automatically analyzing OTDR curves without needing to adjust parameters
- VFL: Locates fiber faults directly and calibrates multi-fiber cables
- Fiber Microscope: Tests the cleanliness and flatness of fiber cross-sections (peripheral required)
- File Manager: Convenient file management system for organizing test results
- Light Source: Offers CW, 1kHz, 2kHz, and blinking lights (1310 or 1550nm) for advanced testing
Specification Overview:
Built with cutting-edge technology, the INNO MINI 2 OTDR ensures reliability, efficiency, and exceptional user satisfaction for fiber testing.
OTDR:
- Display Size: 5 inches, High Brightness TFT LCD, resolution of 800×480
- Distance Units: m / km / mile / ft
- Range Settings: SMF1 : 32/30dB (1310/1550nm) / SMF2 : 30dB (1625nm Live)
- Pulse Widths: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
- Linearity: 0.03dB
- Resolution: 0.04m ~ 10.24m
- Sampling Points: 110,000 points
- Output Power: 20mW
Dimensions:
- Size (HWD): 4.52H x 6.81W x 2.51D inches
- Weight: 1.98 pounds (900 g with battery)
