Product Description

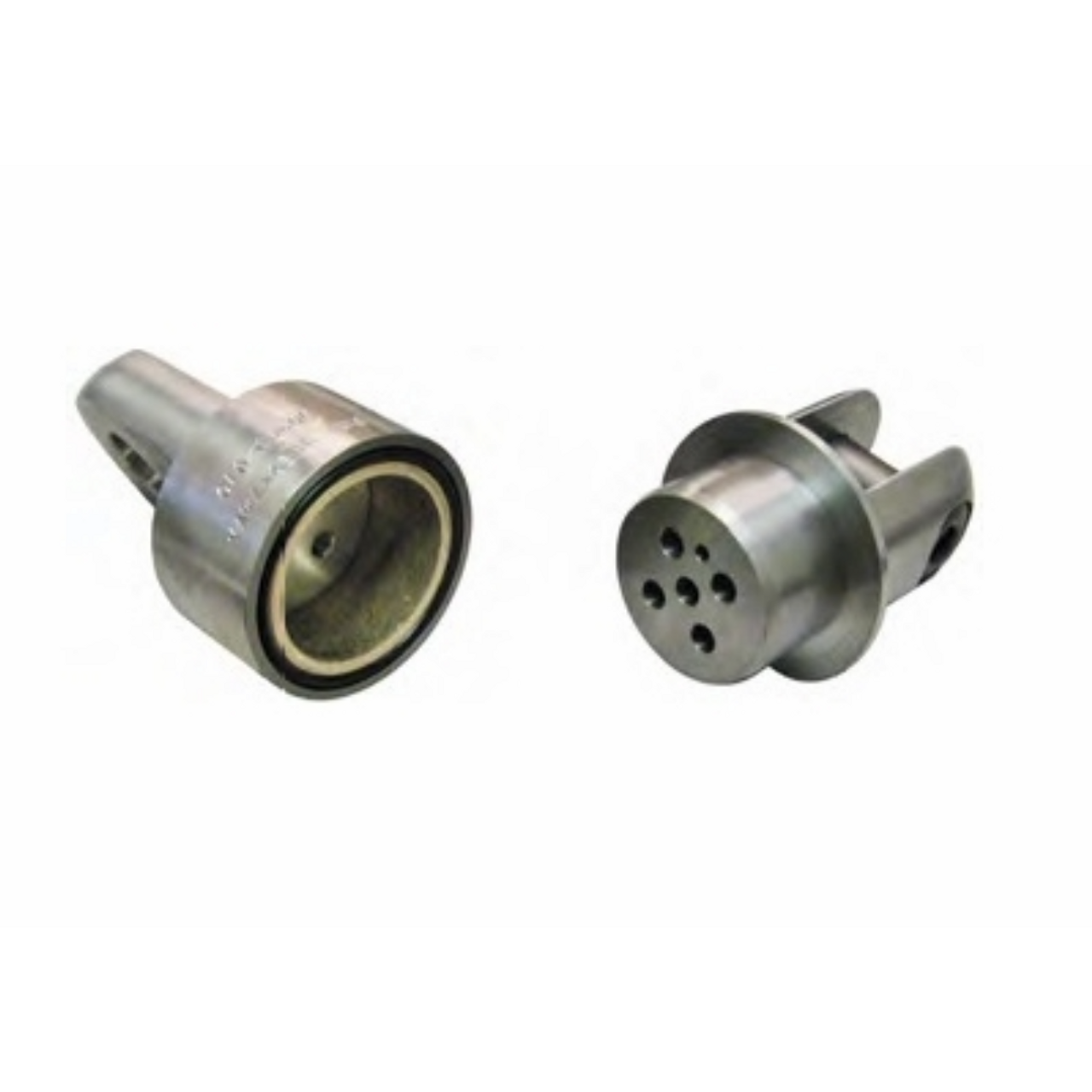

DCD Design 2 ½” Break Away Connector - 12,500 lbs. (CZ 00560-010)
The DCD Design Break Away Connector is specifically designed to protect polyethylene ducting from overload during directional drilling operations. Positioned between the pullback swivel and the duct puller, this three-part connector is secured by breakaway pins that are engineered to break under tension at a preset load.
The connector assembly is completed by using one or more breakaway pins, with the total breaking load determined by the combined value of the pins. For instance, a single 1,000 lb. pin will cause the connector to break at 1,000 lbs., while three 1,000 lb. pins will cause it to break at 3,000 lbs. Different pin values can be mixed and matched within the same connector to achieve a range of breakaway load values.
*Pins Sold Separately
