Product Description

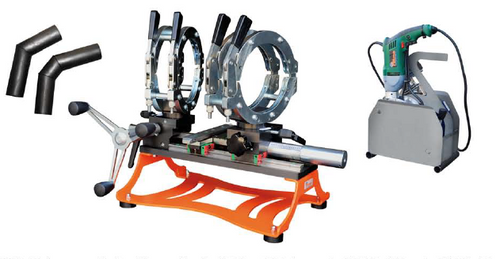

GAMMA 160 is a manual butt welding machine for HOPE and PP pipes up to 0 5" IPS (160 mm). GAMMA 160 features special jaws for manufacturing elbows. Machine can also weld moulded fittings like bends, tees, wyes (Y) and flange necks up to 0 5" IPS (160 mm); short flange necks can be welded with the help of a stub end holder (on request), applied to the clamps. Machine body of GAMMA 160 is compact and easy to transport.
MACHINE COMPOSITION:
- A machine body with pressure regulating device of the bench vice closure
- A steel frame for the support of the machine body
- Steel sliding clamps with fast closing system
- An heating plate with an electronic temperature control device
- An electrically controlled facer for levelling the ends of the pipe and/or fitting, with safety micro-switch against accidental starters
- A support for the facer and the heating plate
- A case for the adapters
- Steel adapters avalaible:
0 40 + 140 mm;
0 1¼" IPS + 5" IPS.
On Request Accessories:
- Tool for flange necks
- Thin single clamp
