Product Description

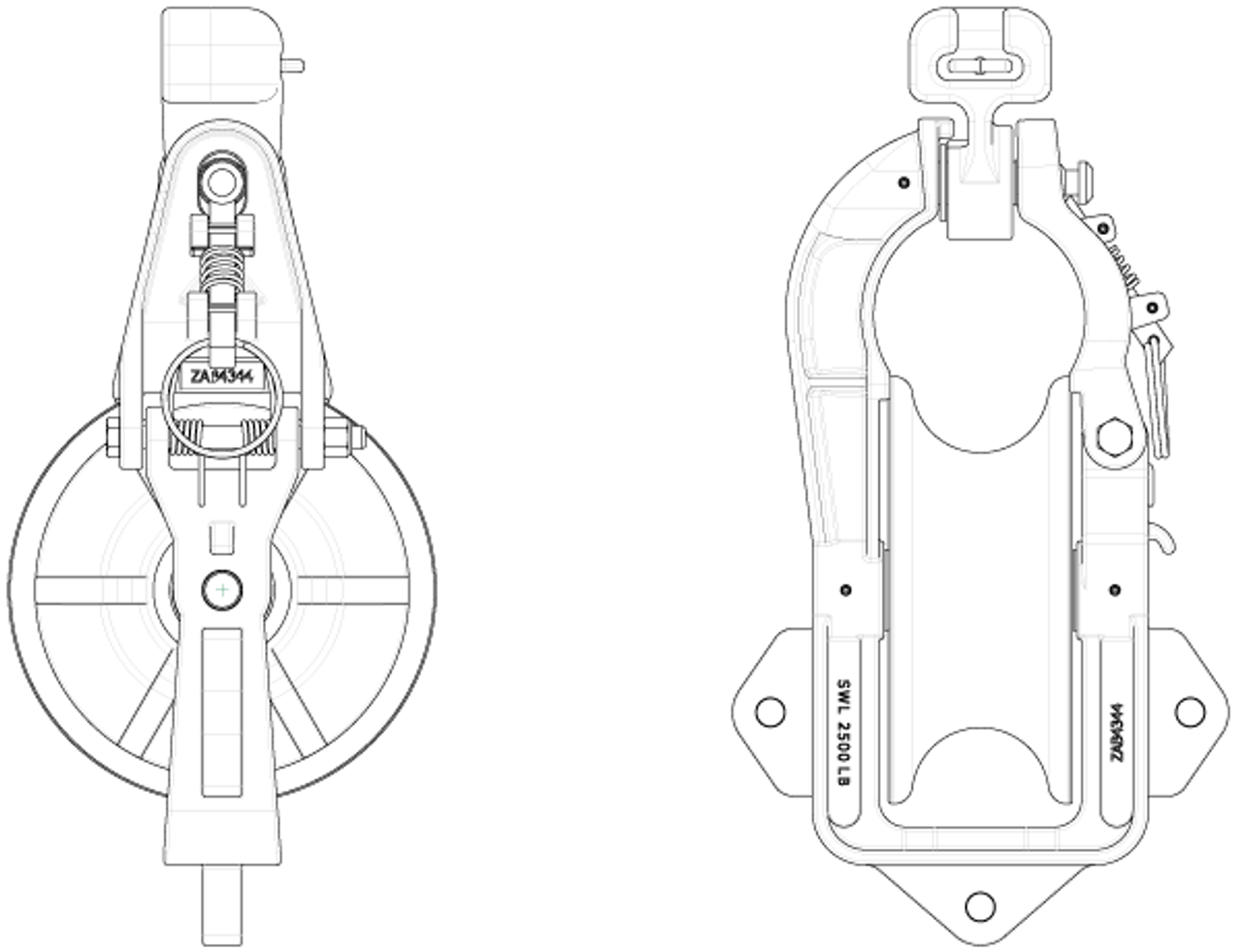

Slingco Stringing Block with Spring Gate - The Slingco ZAB4344 is a 7” aluminum distribution stringing block featuring a spring-loaded gate. It’s designed for transferring or replacing aerial conductors. Equipped with low-friction bearings, this block improves efficiency by maximizing stringing distances, reducing pulling tension, and lessening the load on stringing equipment.
The gate is operable by hot stick or hand and can be locked open, allowing the linesman to easily remove the conductor. Upon release, the gate closes and locks automatically. The ZAB4344 offers three mounting positions and works with Slingco’s crossarm brackets and ball clevis attachments.
Features:
- Lightweight, durable aluminium
- Low-friction bearings
- Crossarm bracket and ball clevis attachments also available
Specifications:
- Weight: 9.2 lb
- WLL: 2,500 lb
- Height: 15.344 in
- Sheave Size: 7 in
- Bottom of Groove: 4.5 in
- Groove Radius: 2.25 in
Socket Mounting Safety Ball Hook (GMP 74136) - The GMP 74136 Hook Ball Clevis with Safety Clip is engineered to suspend blocks safely from fixtures. It provides a secure mounting solution for attaching blocks to overhead points.
Features:
- May be used with any block that has a socket connector.
- Strong, durable, and weather-resistant materials.
- Steel, Heat Treated, Hot Dipped Galvanized
- May be used with any Sherman & Reilly block that has a socket connector.
